商品の詳細:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Power Source: | Electric |
| Warranty: | 1 Year | Machinery Test Report: | Not Available |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Weight (KG): | 6500 kg | Product name: | Hydraulic Articulating Boom Lift Aerial Work Platform |
| Control Method: | Pendant +Remote(Customized) | Lifting height: | 6m-30m(max 100m) |
| Power supply: | 220V/380V 50HZ | MOQ: | 1 Set |
| Capacity: | 100kg -1500kg | After Warranty Service: | Onlinesupport |
| Operating mode: | Hydraulic Control | Drive type: | Rear Wheel Drive |
| ハイライト: | 30m リフティング 望遠鏡式ブームリフト,6m リフティング 望遠鏡式ブームリフト,水力式関節式ブームリフト |
||
|

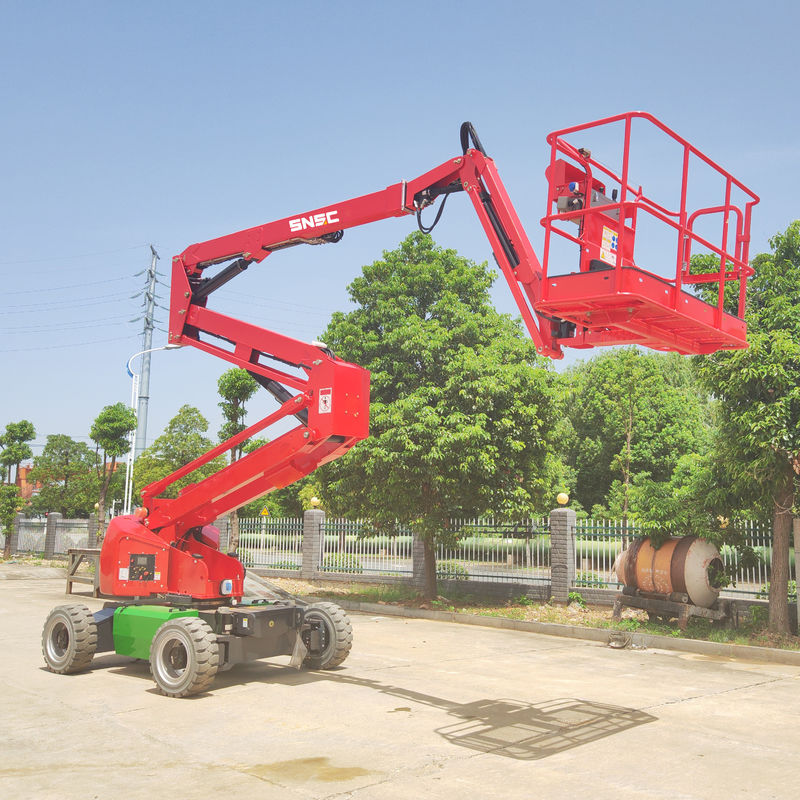

SNSC 全新 自動動動関節式ブームリフトプラットフォーム
|
|
|
|
電源タイプ
|
バッテリー
|
|
|
プラットフォームの最高高さ
|
10m/12.4m/14m/15.8m/18.1m/20m/24.2m/26m
|
|
|
最大作業高度
|
12m/14.4m/16m/17.8m/20.1m/22m/26.2m/28m
|
|
|
横幅最大範囲
|
6.4m/7.4m/7.8m/9.55m/11.6m/12m/15.4m/17.6m
|
|
|
最大上空空間
|
4.78m/6.4m/7.7m/7.7m/8m/9.2m/10.2m/10.2m
|
|
|
プラットフォームの寸法
|
1.1*0.65m/1.53*0.76m/1.83*0.76m/2.44*0.91m
|
|
|
最大持ち上げ容量
|
200kg (約10m), 230kg (約12.4-26m)
|
|
|
労働者
|
2
|
|
|
ドライブ&ステアモード
|
4x2x2 ((12-16m) / 4x4x2 ((17.8-28m)
|
|
|
体重
|
4800kg/6200kg/6800kg/8200kg/9000kg/9835kg/15000kg/17000kg
|
|
