| 型番: | FB15 | リフトの高さ: | 3000～5000mm |
|---|---|---|---|

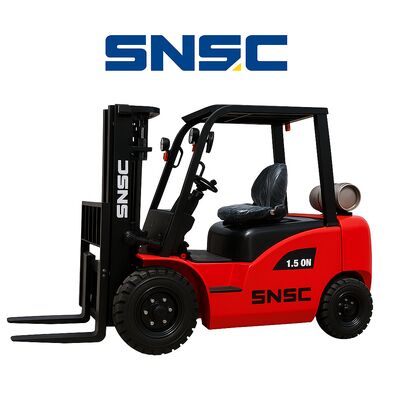

| 状態: | 新しい | 名前: | モンタカーガ・エレクトリコ 1.5 トン |
| 伝染 ; 感染: | オートハイドロリック | マスト: | 2 段階 / 3 段階 |
| 高さを持ち上げる: | 3-7m | タイヤ: | パネウマ / 固体 |
| モーター: | ACモーター | コントローラ: | 米国カーティス |
| 充電器: | 知的 | 輸送パッケージ: | 容器20フィートの |
| 仕様: | 1500kg | 商標: | SNSC |
| 起源: | 中国 | タクシーの位置: | 調整可能 |
| タイプ: | 電動フォークリフト | 燃料: | 電気 |
| 負荷センター: | 500mm | ||
| ハイライト: | 1.5 ton electric forklift,compact lithium battery forklift,warehouse electric forklift |
||
| Model | FB15 | ||||
| Features | Power type | Battery | |||
| Rated Load | kg | 1500 | |||
| Load Center | mm | 500 | |||
| Lifting Height | mm | 3000 | |||
| Free Lifting Height | mm | 135 | |||
| Fork Size | L*W*T | mm | 920x100x40 | ||
| Mast Tilt Radius | Front/Rear | . | 6/12 | ||
| Minimum Turning Radius | mm | 1850 | |||
| Minimum Stacking Right Angle Channel Width | mm | 3520 | |||
| Minimum Right Angle Channel Width | mm | 1830 | |||
| Minimum Ground Clearance | mm | 100 | |||
| Overhead Guard Height | mm | 2100 | |||
| Height From Seat To Overhead Guard | mm | 1005 | |||
| Front Overhang | mm | 405 | |||
| Performance | Max. Traveling Speed | Full load | km/h | 11 | 12 |
| Max. Lifting Speed | Full load | mm/s | 270 | 300 | |
| Max. Climbing Ability | % | 15 | 15 | ||
| Dimension | Overall Length | Without Fork | mm | 1990 | |
| Overall Width | mm | 1070 | |||
| Max. Fork Lifting height (With Load Backrest) | mm | 3860 | |||
| Mast Height | mm | 1955 | |||
| Power | Tyre | Front | mm | 6.50-10-10PR | |
| Rear | mm | 5.00-8-10PR | |||
| Wheel Base | mm | 1250 | |||
| Wheel Tread | Front/Rear | mm | 890/920 | ||
| Curb Weight | Without load | kg | 2990 | ||
| Battery | Voltage/Capacity | V/Ah | 48/450 | ||
| Motor | Driving | Kw | 5 | 8 | |
| Lifting | Kw | 7.5 | 10 | ||
| Controller | CURTIS | ||||
| Control mode | AC | ||||
| Working Pressure | Mpa | 14.5 | |||
Packing Details : 20GP can hold 4 stes 1.5t chariot elevateur electric,
40GP can hold 6 sets 1.5t chariot elevateur electric
Delivery Details :30-40 days
